Microwave barrier
- Ultra-compact, meets the requirements of EU 1935/2004

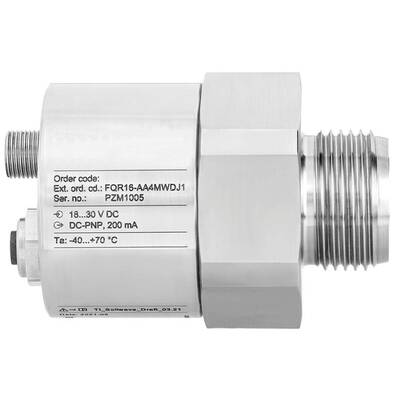

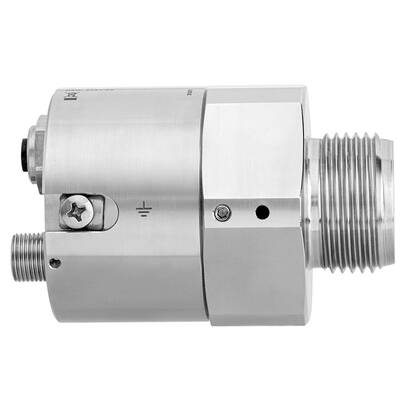

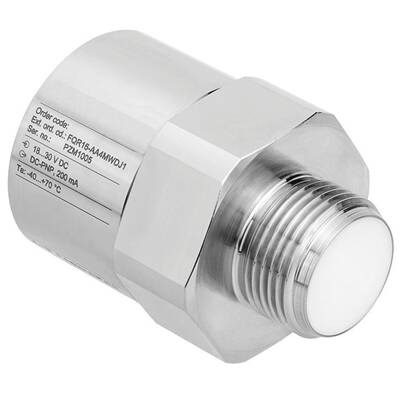

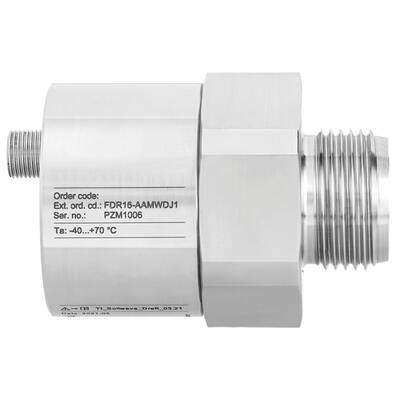

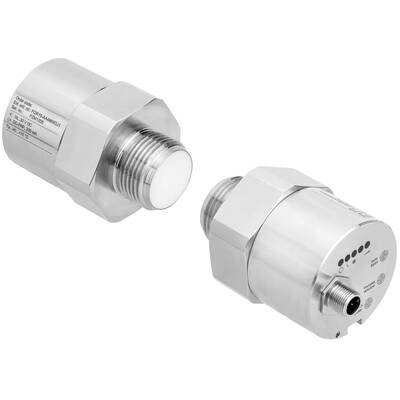

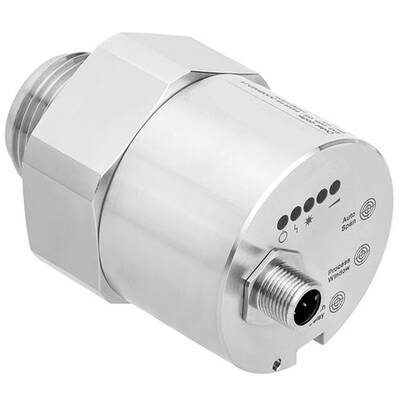

The cost-efficient and ultra-compact FQR16/FDR16 microwave barrier is used for the non-contact and wear-free point level detection of all types of bulk solids, as well as for counting and checking piece goods. It can be installed on containers, conduits, shafts or on free fall shafts. Thanks to its ultra-compact design, the microwave barrier can also be used in applications with difficult-to-access or confined installation conditions. It is possible to take a measurement through non-metallic container materials from the outside. By metallic containers it is recommended to use microwave-permeable windows made of glass, ceramic or PTFE.

The function of the microwave barrier is largely independent of the process conditions, such as the temperature and pressure in containers, aggressive or abrasive media, dust, mist, smoke and sediment deposits.

The materials of the FQR16 / FDR16 microwave barrier that come into contact with the process meet the requirements of EU Regulation 1935/2004 and are therefore suitable for contact with foodstuffs.

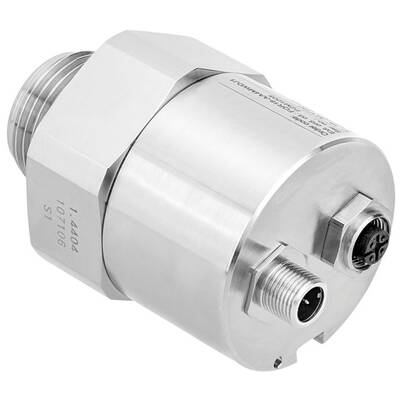

• Ultra-compact devices with integrated power supply and connectors
• Robust and reliable operation under different process conditions
• High profitability as it is wear and maintenance free
• Easy installation and commissioning without special tools
• Flush mounting, contactless installation possible
• Electronics housing can be rotated by 360° after installation, allowing orientation into optimum position
• Adjustable sensitivity and switching delay
• Use even in difficult-to-access or confined installation conditions
• Function control on site via LED indication

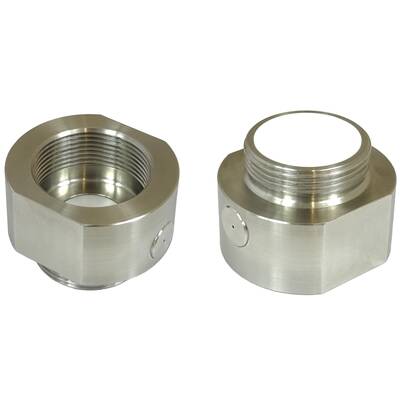

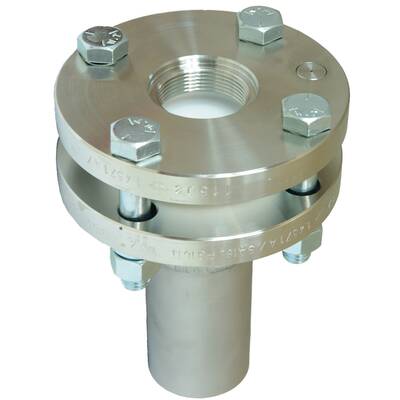

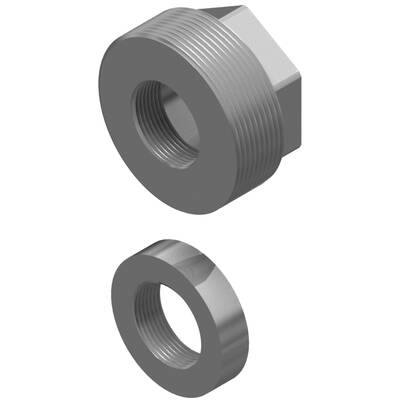

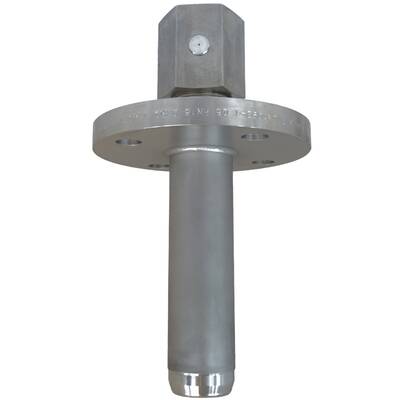

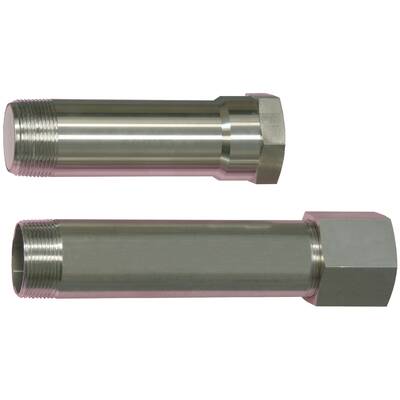

• Easy mounting using G1, G1½ or 1½ NPT thread or a suitable mounting adapter
• Meets the requirements of EU 1935/2004
• DC-PNP power amplifier
• Conforms to ATEX and IECEx
